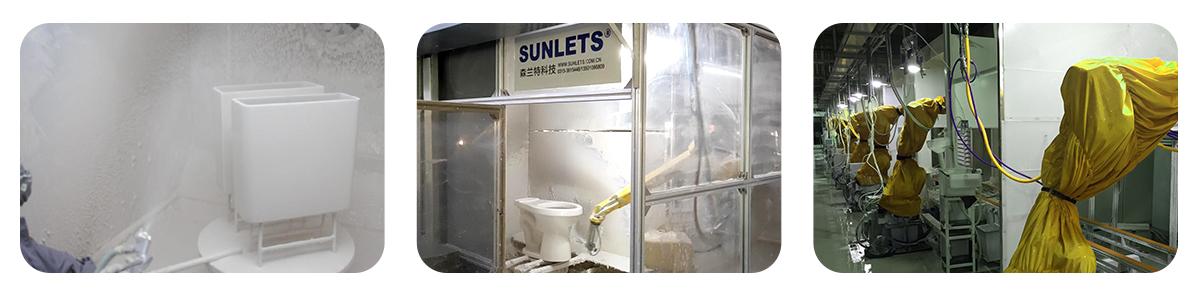

The glazing process is a critical stage that defines the final aesthetics and performance of ceramic sanitaryware, often integrated with green body inspection. Facing increasing demands for quality and efficiency, manufacturers must make informed decisions among three primary technological routes: Manual Glazing, Carousel Glazing Lines, and Robotic Glazing Systems. This analysis provides a systematic evaluation from a techno-economic perspective.
1. Process Overview and Workflow Analysis
Manual Glazing Systems: The workflow relies heavily on manual transfer and operation. After inspection at a dedicated station, the green body is moved by an operator to a spray booth for glazing, followed by logo application. Inter-stage transfer may use carts or roller conveyors, resulting in low overall automation and high labor intensity.
Robotic Glazing Cells: These systems integrate automated conveying (e.g., monorail, belt, or turntable), the robot itself, and a control unit. Inspected ware is automatically conveyed to the robot's work envelope, where it executes precise spraying based on pre-programmed paths, with final unloading and logo stamping performed manually.
Carousel Glazing Lines: Functioning as a continuous flow line, its chain conveyor carries multiple turntables through successive stations. Ware passes through polishing, inspection, spraying (typically involving several sprayers with divided tasks), logo application, and unloading in sequence, enabling fully inline processing with a stable cycle time.
2. Comparative Performance Analysis
Initial Capital Investment
A single manual booth has the lowest equipment cost, but requires the highest number of units to achieve comparable capacity, making the total investment significant. A single carousel line costs more than a manual booth but less than a robotic cell. Robotic systems, involving mechanical, electrical, and software integration, command the highest initial investment per station.Production Efficiency & Capacity
The robotic process cycle is approximately 2 minutes per piece, manual spraying about 3 minutes, while the carousel line, leveraging its nature, can achieve a cycle time as low as 20 seconds, granting it a superior theoretical output. A standard carousel line can reach ~900 pieces per 8-hour shift, significantly outperforming manual units (~180 pieces) and robotic cells (~200 pieces).Operational & Maintenance Costs
Manual systems have minimal maintenance needs due to simple equipment. Carousel lines require regular maintenance for mechanical transmission parts, with moderate complexity and cost. Robotic systems, integrating precision mechanics, electronics, and controls, demand high maintenance expertise. Resolving complex faults often requires OEM support, leading to relatively higher long-term maintenance costs.Quality Stability & Yield
Manual glazing quality is highly dependent on operator skill and consistency, leading to potential variability. Robotic spraying offers high precision and repeatability, but systemic defects can occur due to issues like clogged guns. Carousel lines distribute the glazing task among multiple sprayers, reducing the impact of individual error on the final product and favoring consistent batch quality.Manpower Allocation & Skill Requirements
Manual cells require highly skilled operators. Robotic cells necessitate technicians for programming and maintenance, but place Basic operational skills on line operators. Carousel lines require less specialized skill from individual sprayers for their specific task, but need a larger total workforce, emphasizing teamwork.Flexibility & Adaptability
Robotic systems offer the greatest flexibility, adapting to new products primarily through program changes. Manual glazing allows for quick adjustments but relies heavily on worker experience. Carousel lines are best suited for high-volume, standardized production; product changeovers involve re-balancing the entire line's rhythm, resulting in relatively lower flexibility.
3. Conclusion and Selection Guidance
Each glazing technology serves a distinct purpose. Manual Glazing is suitable for low-volume, high-mix, or geometrically complex production. Robotic Glazing excels in flexible automation, high-precision consistency, and medium-to-long-term labor cost control, positioning it as a key direction for smart manufacturing upgrades. Carousel Glazing demonstrates significant cost and efficiency advantages in large-scale production dedicated to maximizing output for specific product types. The optimal choice requires a comprehensive evaluation of the company's product portfolio, capacity goals, investment budget, and technical team capabilities.
